SKU: 000163900000

Awning Oasi

Carcamp
€986,00
€986,00
Sale Sold out
/
Tax included.
Cut:
Installation side:
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.
Product details

The awning OASI 270+ 2 (left version) it is a premium covering solution, designed for those who want to transform the side of their vehicle into an extended and highly functional living area.
With its 270 degree opening and generous shade surface of 9,5 m², this freestanding system offers complete coverage, ideal for creating shaded areas for relaxing, cooking or outdoor dining.
The black aluminium structure, enriched by 4 integrated LED strips, makes setup quick and comfortable even in the evening hours. Thanks to the provision for connecting up to 8 single walls, OASI 270+ 2 confirms itself as a versatile modular system, perfect for adapting to every travel need in total autonomy.

Measurements

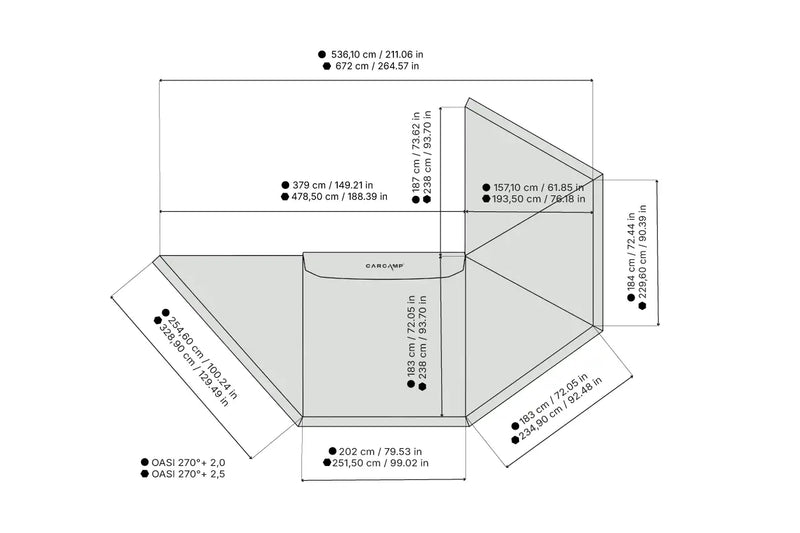

Schema misure tendalino OASI 270+ 2

Main measurements

Package Dimensions (L × W × H)
212.5 × 24.5 × 24,5 cm
Dimensions without brackets (L × W × H)
204 × 17 × 20 cm
Packaged product weight
31,2 kg
Weight only awning
24,0 kg
Opening / coverage
270° opening
Shading surface
9,5 m²
Maximum recommended mounting height
200–220 cm (based on the height of applied walls)

Product data

Category
Awning self-supporting lateral
Version / opening side
Sinister
Internal code Carcamp
000163900000
Manufacturer model code
WF2720

Assembly and bracketing

Bracket dimensions (L × W × H)
22.5 × 19 × 4,5 cm
Useful distance between mounting brackets
167 cm
Terminal area not bracketable
17,5 cm per side
Bar length / bracket-mounting rail
202 cm
Weight of brackets + small parts
2,5 kg (complete kit of brackets + accessories); of which brackets approximately 1,3 kg

Extension and dimensions in use

Front/side depth
Front 183,0 cm; side 157,1 cm
Opening / coverage
270° opening
Shading surface
9,5 m²
Recommended maximum height
200–220 cm (based on the height of applied walls)
Materials and Care

Materials and structure

Main fabric
300D rip-stop polyester
Waterproof / finish
Waterproof 2000 mm; internal black PU coating full Silver out; PVC cover 650/1000D
UV protection / treatment
UV 50+; reflective top layer
Frame / arms / profiles
Structure / arms in black aluminium
Legs / supports / poles
4 integrated legs/supports + 2 removable telescopic poles
Hinges / Fixings
Hinges in stainless steel 304; dedicated brackets and small parts
LED system / wiring
4 LED strips with switch + 1 USB cable CE-RoHS certification
Water rise / anti-stagnation profiles
3 water rise profiles: 2 integrated rotating + 1 manual
Storage pockets / useful details
2 integrated storage pockets
Wall preparation / annex
8 individually connectable walls
Technical notes
Customised rubber logo + laser cutting on the arm
Maximum recommended mounting height
200-220 cm (based on the height of the applied walls)
Main odds
overall dimensions 251 cm, useful anchoring surface 216 cm, non-bracketable areas 17,5 cm per side

Equipment included

Awning complete 270° (1)
Main body with integrated structure/arms
Fixing bracket set (1)
Brackets for anchoring to the vehicle / roof rack
Hardware kit (1)
Hardware, nuts, washers and mounting accessories
Removable telescopic poles (6)
Additional support/tensioning poles
Integrated supports / legs (4)
Structural elements already integrated into the awning
Water riser profiles (3)
2 integrated rotary + 1 manual to be inserted if necessary
assembly and use kit (1)
2 x 13 ratchet wrenches, 1 USB cable, 3 pegs, 2 ropes, 2 fixing plates, 2 ratchet straps 2 telescopic poles, 1 pole containment bag

Packaging composition

Corrugated cardboard
PAP 20; Reinforced corrugated cardboard; 3,3 kg
Expanded polystyrene
EPS 06; 4pcs terminals/end protector; 0,02 kg
Bubble wrap
LDPE 04; To be verified according to version / batch; 0,15 kg
Film/plastic bag
LDPE 04
Expanded polyethylene
LDPE 04
MDF panel / spacer
FOR 50
Total packaging detected (kg)
3,47 kg

Care and maintenance

Fabric cleaning
Clean with water and neutral detergent, avoiding solvents, bleach and aggressive products.
Drying
Close the awning only when the fabric is completely dry, to limit humidity and mold.
Conservation
After use in rain or humidity, reopen and let the cover dry before long periods of non-use.
Fixing check
Periodically check brackets, bolts, profiles and anchoring points, especially after long journeys.
Use in wind
In windy conditions, always use ropes, pegs and tensioning systems; close the awning in case of intense conditions.
